Full Scale Clay Model

To design the modern Hawk, a 2D sketch is great for direction, but when it comes to the details a 3D mockup is important for refinement. The dream starts with a sketch, and in a freeform medium like pencil and paper, anything can happen. When you get to a full scale clay model, ergonomics are important for the rider. Packaging mechanical components and creating every part to be integral in the system is the goal.

Placeholder imagePlaceholder image
Thumbnail Image 1

Concept Sketch Design Development

Full vehicle as well as component design development

Thumbnail Image 1

Executing design in 3D

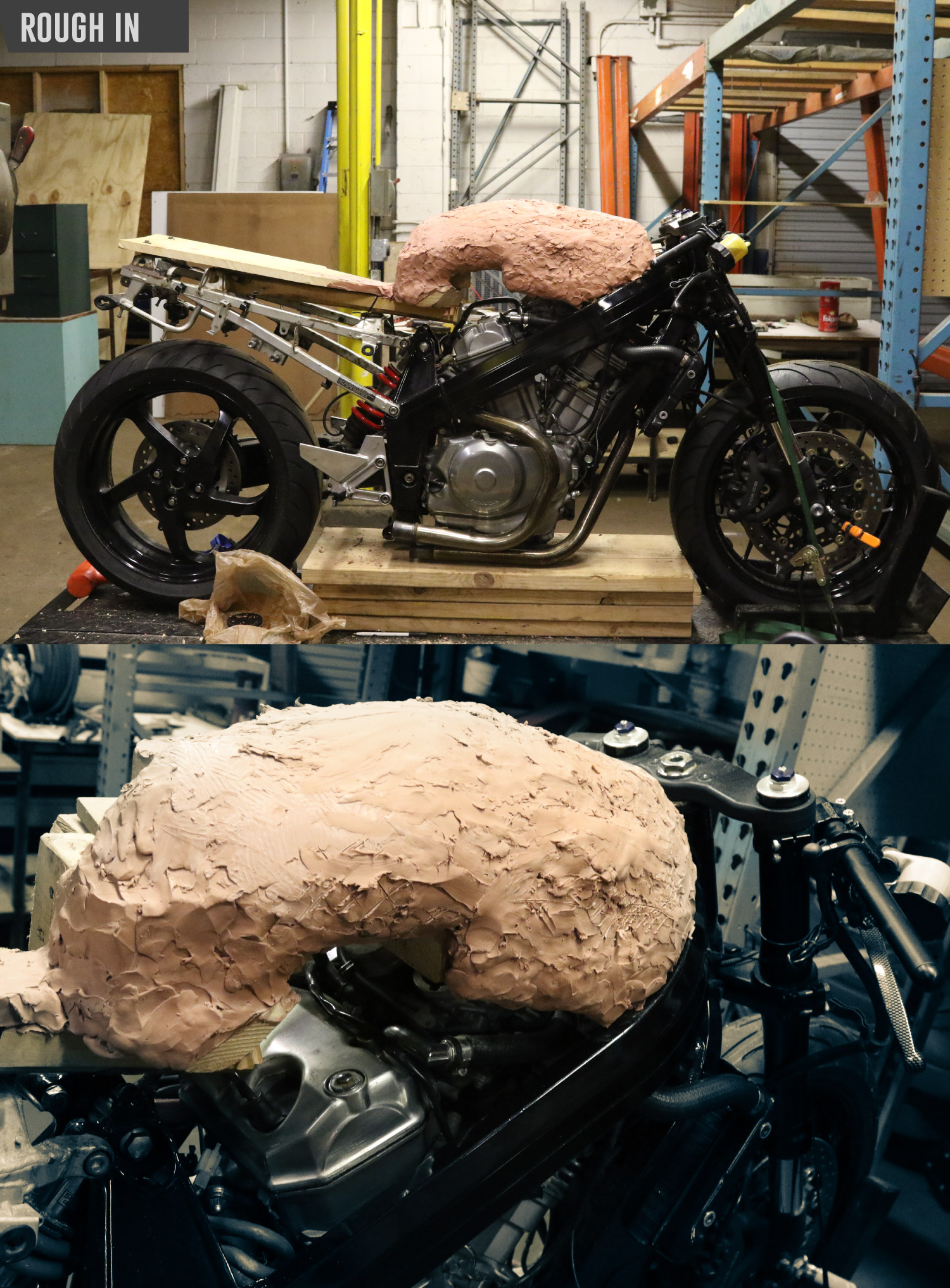

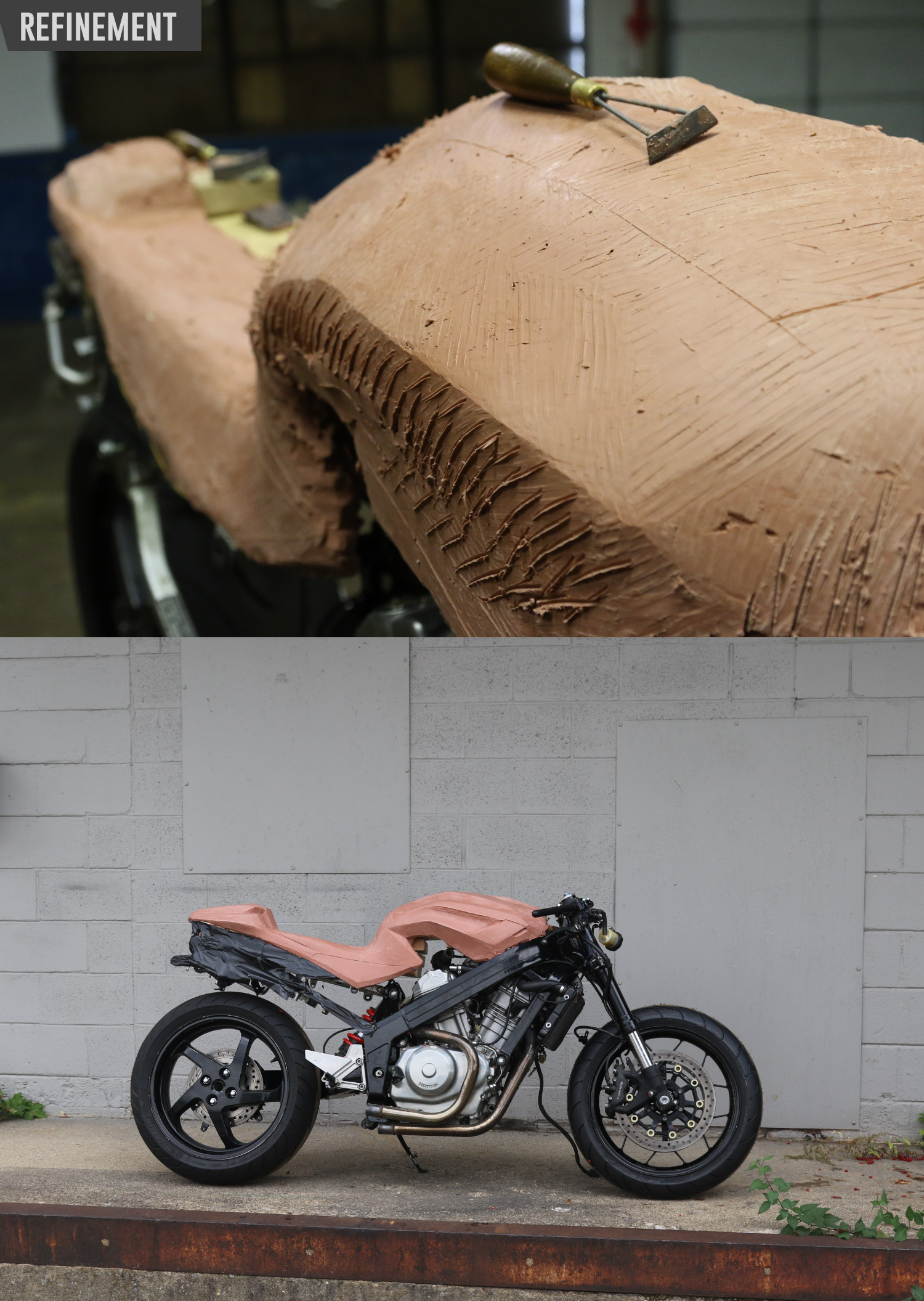

Clay sculpting to develp the concept form translates the concept from 2D to 3D

Thumbnail Image 1

Concept bike build

Building the concept on an '89 Honda Hawk GT chassis

Thumbnail Image 1

Digital 3D design

Constructing the design in CAD allows form and mechanical development
